| Agitators & Mixers |
|
|
|

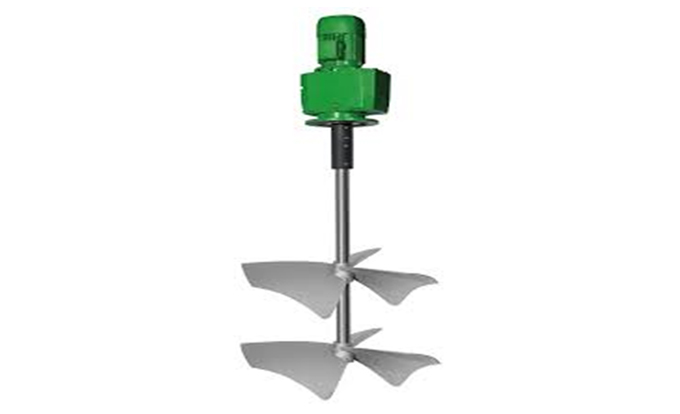

| PETROLEUM DRILLING FLUID MUD AGITATOR |
| The mud agitator is widely used in the ground tank of the drilling fluid. The mechanical mud agitator is made of the drive motor, gear reducer, transmission box output shaft and impeller etc.The appropriate mud agitator can keep all the solid phase particles uniform, if the shearing action is proper, the performance of the drilling fluid system is all the same and can save power. |
| |
|
| |
| The principle of operation: |
| The impeller can stengthen the stirring effect by making vortex of the drilling fluid. The tray installed between the leaf blades can prevent the deposition of the solid particles when the machine stopped, thereby, to reduce the moment of resistance inflicted by the sediment to the impellers when restart the equipment, therefore, to avoid burnout of the machine. |
| |
| The Structure of the Mud Agitator |
|
| The transmission mechanism |
| The transmission mechanism are mainly made of motor, reducer device, coupling and the mixer shaft, there are a few drilling fluid mud agitators in the solid control equipment. The rotating mechanism of the turbine and the worm is simple, the strong reliability, it is the most popular in the drilling fluid, to use worm and gear to rotate directly. |
| |
| Impellers |
| The impeller is the part of rotation, the structure of the impeller determines the function of the impeller, the sharpes of the different liquid storage tanks are different, we select the different impellers according to the experiences and customs. The reasonable method is according to the mixing purpose and the formation of flow state. |
| |
| The mixer shaft |

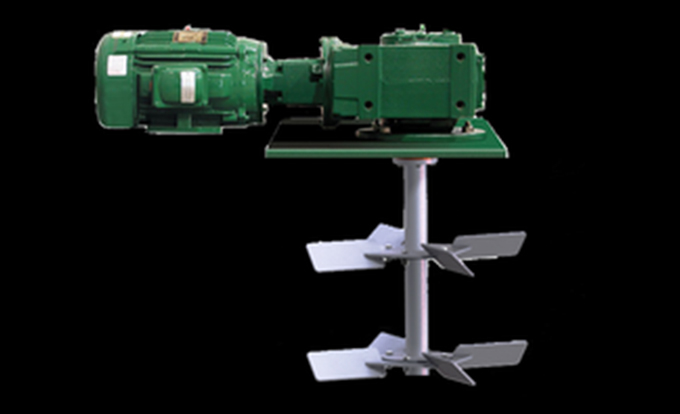

| Marshal Engineering Corporation, is a professional manufacturer for soilds control equipments.We have designed lots of high-quality products, and MTL series Agitator is one of them. To keep both the mud uniformity and the suspension of solids, the mud agitator is used to agitate the mud consecutively and reliably.This agitator agitates the mud to make cuttings, silt and sand pass the solids control system without being precipitated onto the tank bottom. Due to the simplex turbine decelerator, this product is featured by compact construction, light weight, balanced transmission, low noise, high efficiency of transmission and strong agitating power. Therefore, it is a reliable product in the solids control system. |
| |
|
| |
|
|
|
|
|
|
